16.5KW Power Building Material Shops Wood Furniture Machine Straight Automatic Edge Bander

Place of Origin : Shandong, China

Condition : New

Machine Type : Edge Banding Machine

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Marketing Type : Ordinary Product

Warranty of core components : 1 Year

Core Components : PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump

Warranty : 1 Year

Weight (KG) : 2800 KG

Power (kW) : 16.5KW

Key Selling Points : High Productivity

Showroom Location : None

Applicable Industries : Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising C

Product name : Wood Edge Binding Machine

Packaging Details : 1. Outside package: Standard marine export plywood cases.
2. Inner package: Stretch film and plastic film for humidity.
We can package according to your requests
Port
Qingdao port

Port : We can package according to your requests Port Qingdao port

Supply Ability : 100 Acre/Acres per Month

Price : $24,000.00/acres 1-2 acres

MOQ : 1 set

Contact Now

Wood Edge Binding Machine

16.5KW Power Building Material Shops Wood Furniture Machine Straight Automatic Edge Bander

Technical Paramaters:
Banding tape thickness	0.4-3 mm	Rough trimming motor power	0.75 KW x 2
Banding tape width	12-65 mm	Fine trimming power	0.75 KW x 2
Work piece thickness	10-60 mm	Corner rounding motor power	0.55 KW x 2
Work piece length	>=100 mm	Polishing motor power	0.37 KW x 2
Work piece width	>=50 mm	Feeding speed	10-28 m/min
Heating power	1.8 KW	Air pressure	0.7 Mpa
Feeding motor power	3.7 KW	Overall dimension	6700x880x1550 mm
Pre-milling motor power	2.2 KW x 2	Packing size	6750x900x1600 mm
Glue spreading power	0.75 KW	N.W.	2800 KGS
End trimming power	0.55 KW x Type2	G.W.	2950 KGS

16.5KW Power Building Material Shops Wood Furniture Machine Straight Automatic Edge Bander
l

Max cutting length	2800 / 3000/ 3200 / 3600 / 3800mm
Max cutting width	3000mm	Sliding table width	375mm
Main saw blade diameter	300mm	Tilting saw blade	0-45degree
Scoring saw blade diameter	120mm	Height of cut at 45°	65mm
Main saw spindle speed	4500-6000rpm	Height of cut at 90°	100mm
Scoring saw spindle speed	8000-9000rpm	Main motor	4KW
Main spindle diameter	30mm	Scoring motor	0.75KW
Scoring spindel diameter	20mm	Gross weight	800kg
Overall diameter	2850 / 3050 / 3250 / 3650 / 3850 x 3150 x 900mm

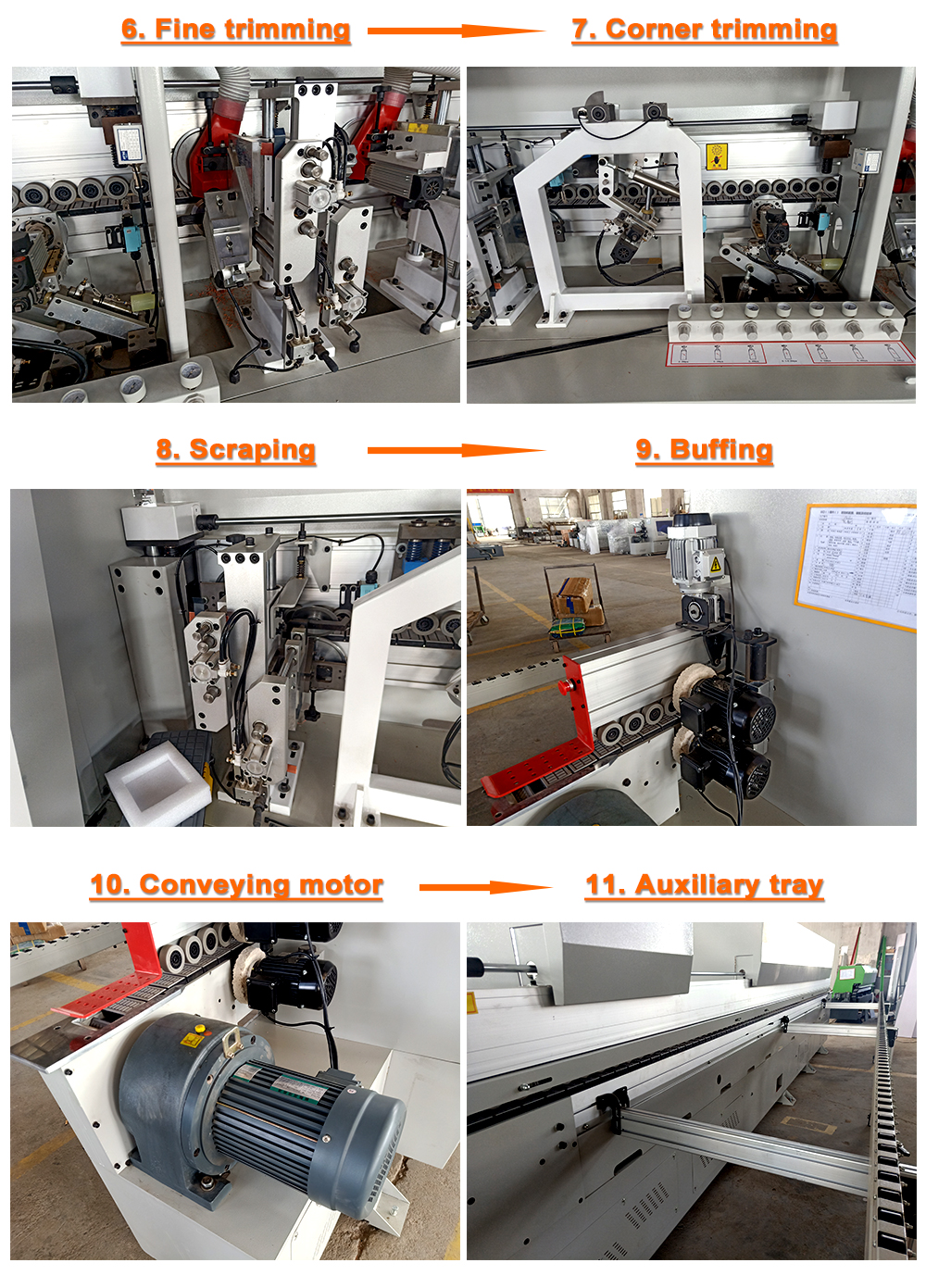

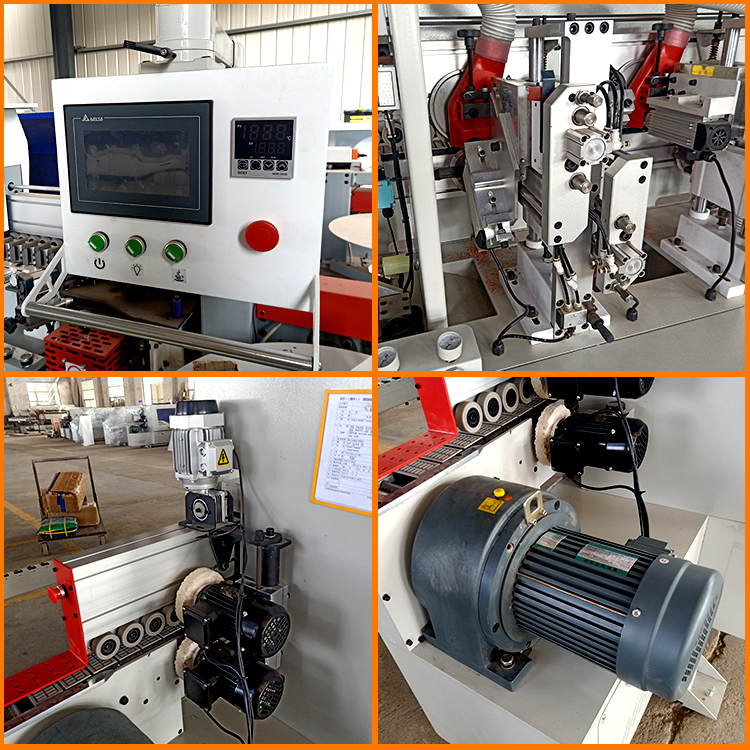

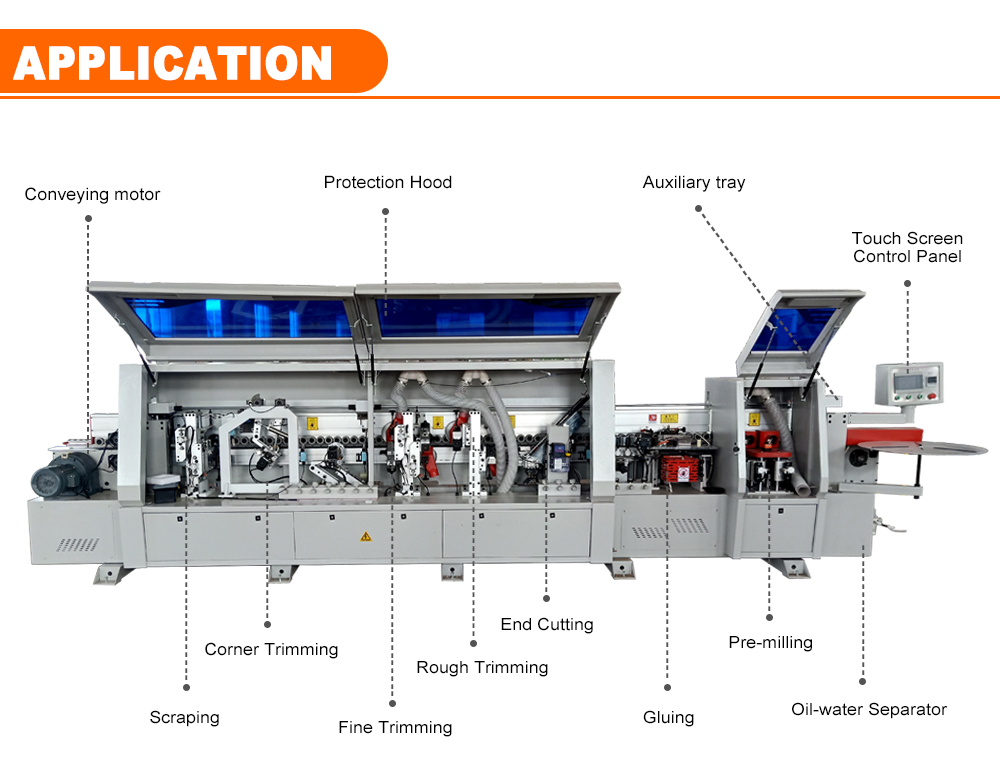

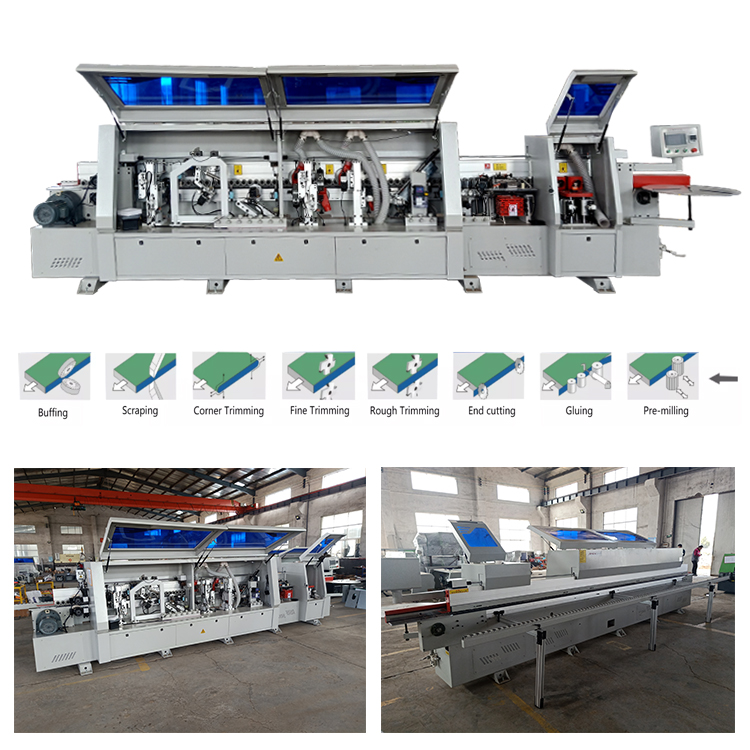

16.5KW Power Building Material Shops Wood Furniture Machine Straight Automatic Edge Bander Images
